Rainwater Harvesting System Layout Docs Clients Actually Trust

Most rainwater layouts fail for a simple reason: they show parts, but not the water story. A tank icon and a few arrows aren’t enough when a client wants to know where overflow goes, an installer needs elevations, or a reviewer needs to see how the whole system works from roof to soil.

The steadier approach is to make the journey traceable. Build the layout around catchment, conveyance, storage, and use, and give overflow equal importance. Then show the same system three ways: a plan for relationships, a section for heights and falls, and a simple schematic for sequence. When the path is obvious on paper, people trust the design faster and site work runs with far less confusion.

Key Takeaway: Strong rainwater documents show a complete, traceable water journey rather than a collection of parts. The clearest layouts organize the system around catchment, conveyance, storage, and use; pair a plan, section, and schematic that agree; show basic rainfall, roof area, and demand calculations; place storage with gravity and practical use in mind; design overflow for large storms; and connect surplus water to soil-building landscape features.

Start with the water journey: catchment, conveyance, storage, and use

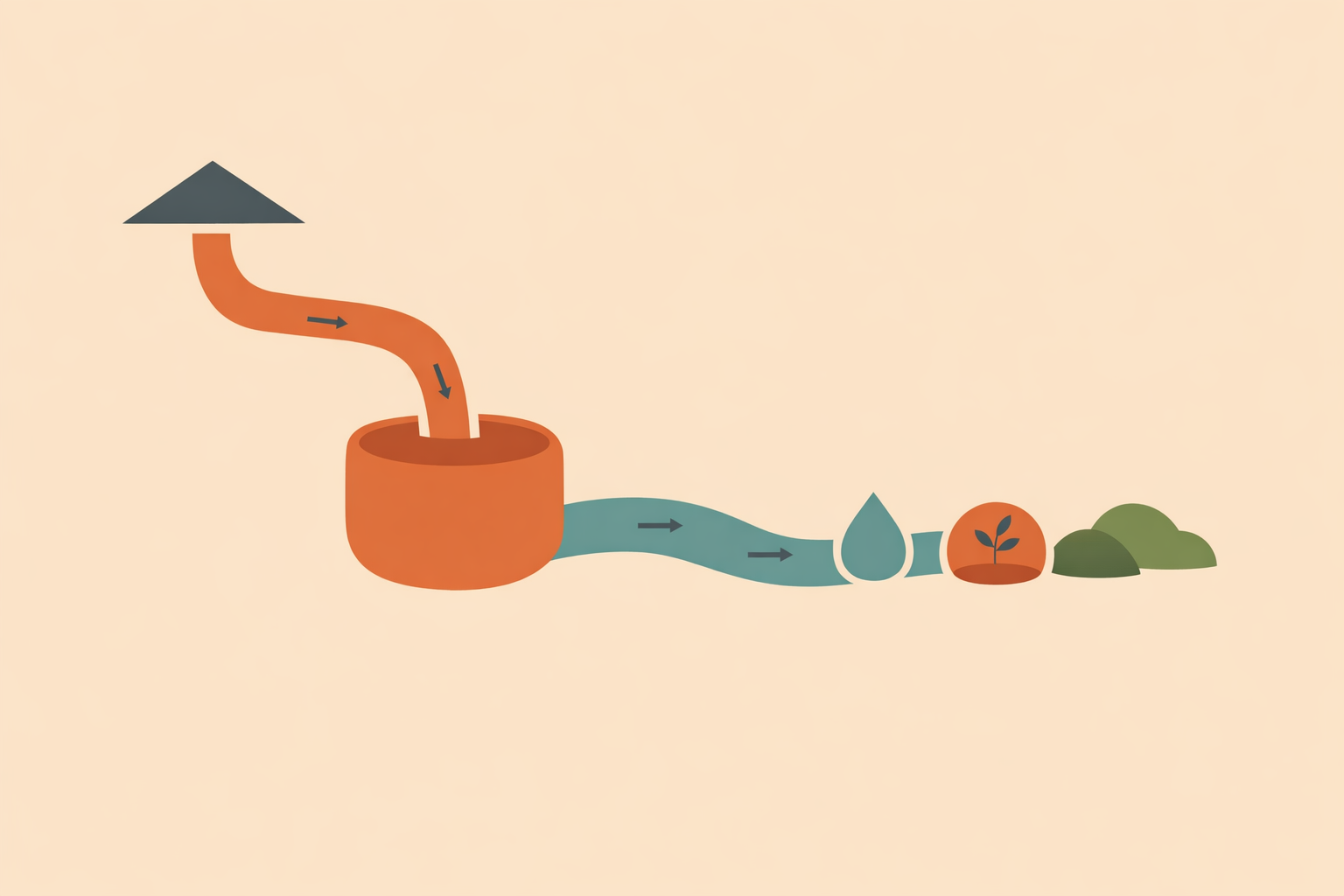

The strongest layouts begin with one consistent backbone: catchment → conveyance → storage → use. It gives the page a clear reading order, so everyone understands the system the same way.

That structure also matches common documentation expectations: rainwater systems are increasingly presented as coordinated measures working together as a treatment series, including storage, overflow, and landscape pathways.

Keep each stage clear and practical on the drawing:

• Catchment: roof area and surface type.
• Conveyance: gutters, downpipes, screens, and first-flush points.
• Storage: tank or cistern, with inlet, outlet, and overflow levels.
• Use: irrigation points, hose bibs, or other non-pressured end uses.

If the design harvests into the landscape too, show that continuation. Roof-fed systems often do their best work when they extend beyond the tank into swales, basins, or rain gardens: stored water serves day-to-day needs, while overflow builds the site’s “soil sponge” over time.

Use three drawings that agree: plan, section, and schematic

One drawing usually gets overloaded. A calmer, more readable method is three small views that reinforce each other.

1. Plan view
Show the building edge, downpipes, tank location, overflow route, and receiving landscape feature. This view explains relationships and distances.

2. Section view
Show heights, falls, inlet level, maximum water level, overflow level, and discharge direction. This is where gravity becomes visible.

3. Simple schematic
Show sequence only: roof to screen, screen to first-flush, first-flush to storage, storage to use, storage to overflow. This is often the quickest way for a client or installer to grasp the whole chain.

Together, they answer different questions without crowding each other. The plan shows where. The section shows how water moves. The schematic shows what comes next.

Keep legends brief and notes purposeful. When the drawings are clear, they don’t need long explanations.

Size and site from real numbers

Confidence grows when the layout shows why choices were made. Start with three numbers—local rainfall, roof area, and intended demand—and put the quick math directly on the sheet.

A widely used estimate for rooftop capture is the 0.623 factor: rainfall in inches × roof area in square feet × 0.623 gives an approximate number of gallons collected.

With that one line, tank sizing becomes a visible decision instead of a vague guess.

Next, site storage so the system fits the property. Short pipe runs reduce cost and complexity, and placing storage near both the roof source and frequent-use areas usually improves day-to-day usability.

Whenever you can, lean on gravity. Gravity-fed systems deliver stored water with minimal energy input, and that “high-to-low” approach has long been a cornerstone in traditional land design.

A short siting note is often enough: “Tank on level pad at northeast corner; close to downpipe; outlet directed to kitchen garden; overflow falls to basin below.” It tells the story without clutter.

Design overflow for big storms, not just ordinary days

The most important moment in a rainwater system often arrives when the tank is already full and another heavy storm hits. If the overflow route is vague, that’s when problems show up.

Overflow and drainage need real capacity for intense rainfall because inadequate capacity can lead to flooding impacts. Treat overflow as a primary pathway, not an afterthought.

On the layout, make the overflow path as clear as the inlet path:

• mark the overflow level
• show pipe size and direction
• note the fall or grade
• identify the receiving area

Then put that surplus to work. Overflow can feed rain gardens, bioswales, or infiltration basins, and these features are widely used to capture and filter runoff while reducing strain on drainage systems.

This is where permaculture design thinking strengthens the layout. The question shifts from “How do we get excess water away?” to “Where can it do good first?” Overflow can hydrate a basin, support deep-rooted plantings, and steadily increase site moisture.

Simple reliability features: screens, sealed storage, and first-flush

Reliable systems stay reliable because of ordinary details done well: screens, inlet protection, first-flush diverters, and sensible storage choices.

Make those details visible on the drawing. Show where debris is intercepted and where the dirtiest initial runoff is diverted before storage. A few clear labels often answer questions before they’re asked.

Storage design matters too. Fine screens and sealed storage reduce insect entry, and covered tanks limit sunlight and help keep algae growth down over time.

It also helps to be direct and conservative about intended use. Roof runoff quality varies, and roof materials can contribute unwanted contaminants depending on conditions.

Clear plan notes are usually enough:

• intended use: garden irrigation
• leaf screen at downpipe
• first-flush diverter at inlet
• opaque sealed tank
• mesh protection at inlet and overflow

This kind of clarity builds trust because it shows care, practicality, and follow-through.

Connect roof to soil with living infrastructure

A rainwater layout becomes far more useful when it doesn’t stop at the tank. In permaculture design, the strongest systems guide water through multiple benefits: storage, plant support, soil hydration, habitat, and microclimate.

That’s why this sequence often serves sites best: roof → storage → controlled overflow → infiltration feature.

Vegetated features are functional infrastructure. Rain gardens, swales, and similar planted systems are widely recommended for stormwater management and bring useful co-benefits alongside it.

Densely planted receiving areas generally outperform bare basins. Perennials and groundcovers slow flow, protect soil, and make the overflow zone durable and self-supporting.

Designing from the highest workable point and moving downhill also strengthens the whole chain. One good elevation decision can set everything up: tank above, basin below, and planting zones positioned where water can be absorbed and used naturally.

Even small rooftop systems paired with infiltration features can support home landscapes and shared green spaces through dry periods. Many resilient design resources highlight rainwater collection systems and bioretention features as practical climate-responsive strategies.

Make traceable layouts your standard practice

Good rainwater documentation isn’t about fancier drawings. It’s about drawings that anyone involved can follow. When the water story is visible, trust grows naturally.

Use this as your baseline:

• organize every layout around catchment, conveyance, storage, and use
• show plan, section, and schematic that agree
• include simple rainfall, roof area, and demand notes
• place storage so gravity and daily use both make sense
• draw overflow as a primary pathway, not a footnote
• show basic reliability and water-quality safeguards
• connect surplus water to soil-building landscape features

There’s a wider reason this matters, too. Rainwater harvesting is increasingly positioned as part of water security and drought resilience, and it scales well from single homes to shared settings. Guidance also emphasizes how buildings and communities benefit from backup and supplemental water strategies.

When documentation aligns with rainwater harvesting systems and resilient site expectations, approvals, builds, and long-term care all get easier. Keep the story traceable, and the layout becomes what it should be: a readable map of how water moves through a place and supports life there.
